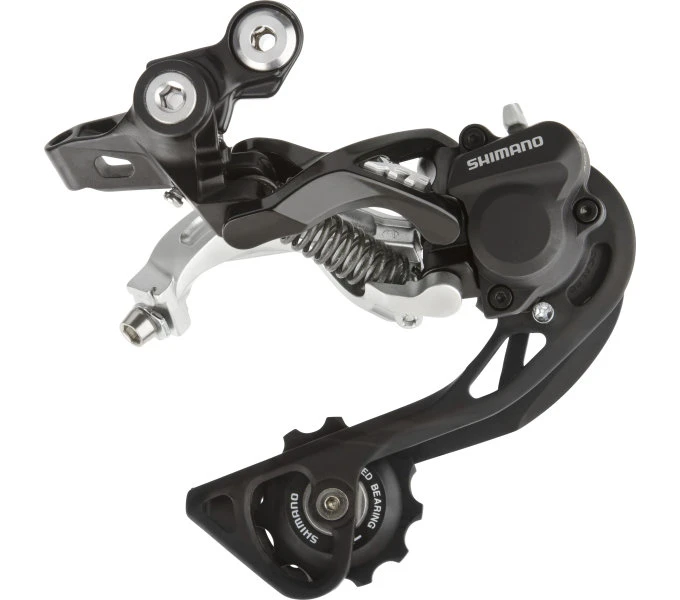

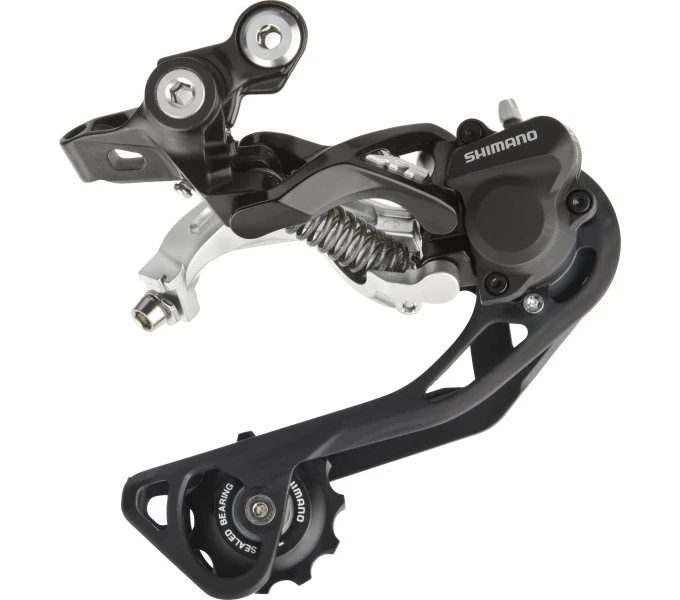

SHIMANO DEORE XT RD-M786 GS | SGS 10-speed Rear Derailleur – Medium Length | Long

The XT groupset is SHIMANO’s flagship in the MTB sector. This claim is naturally reflected in the DEORE XT RD-M786 rear derailleur. It combines pretty much all the rear derailleur technology that Shimano has to offer. This has a clear effect on the extraordinarily high performance of this rear derailleur.

It is designed for use on MTBs with 1×10, 2×10 or 3×10-speed drivetrains and thus offers a wide range of ratios. It is characterised by fast and precise shifting processes. An 11-tooth idler and a damper counteract drive noise and provide a good portion of comfort. The SHADOW RD technology keeps the chain tension high even in rough terrain.

Both body and cage are made of aluminium. This gives the rear derailleur a weight of only around 266g. The flat design creates safety on narrow trails and also makes a very noble impression.

Furthermore, it is equipped with fluorine-coated pivot bushings. The rear derailleur rollers run on sealed industrial bearings. This guarantees a long life expectancy.

Note
Only the SGS version with long cage is compatible with 3×10-speed drives.

FEATURES

• Top performance
• Elegant look
• MTB optimised
• 1×10 | 2×10 | 3×10-speed compatible
• Long cage
• Slim design
• SHADOW RD PLUS
• Approx. 266g

Technologies

SHADOW RD PLUS
A stabiliser in the rear derailleur effectively prevents the chain from slamming off-road. This improves chain guidance and reduces the risk of the chain jumping off. In addition, the technology ensures less noise in the drive.

Note: should you have any questions regarding compatibility or availability, do not hesitate to contact our customer service.

Specifications

Manufacturer:	Shimano
Weight:	approx. 249 g Manufacturer’s specification
Item:	SHIMANO DEORE XT RD-M786 GS | SGS 10-speed rear derailleur – medium length | long
Scope of delivery:	1 x RD-M786 derailleur
Colour:	black
Maker’s ref. no.:	I-RDM786GSL | I-RDM786SGSL
Field of application:	MTB
Mounting:	Direct mounting
Switching steps:	10-speed
Functionality:	Mechanic
EAN:	4524667299455 | 4524667299295
Total capacity:	GS – 35 teeth | SGS – 43 teeth
Max. largest pinion:	36 teeth
Min. smallest pinion:	11 teeth
Cage length rear derailleur:	Mid-long | Long
Recommended chain:	HG-X 10-speed
Stabiliser (preload):	SHIMANO SHADOW RD+
