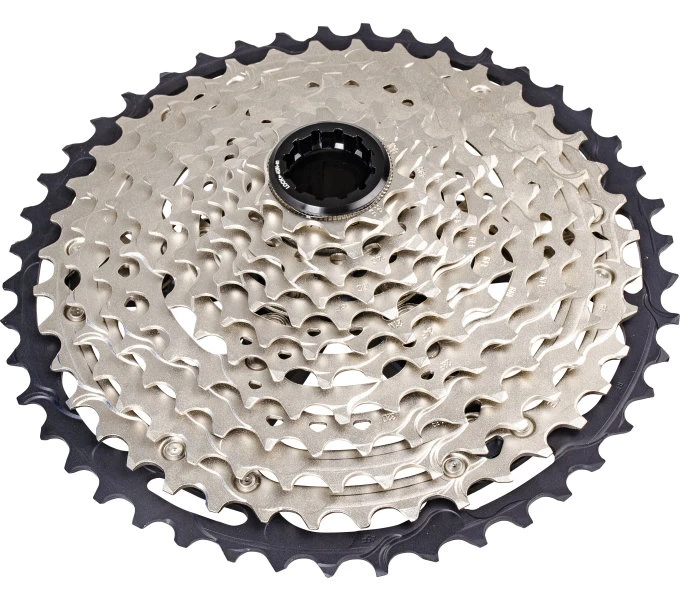

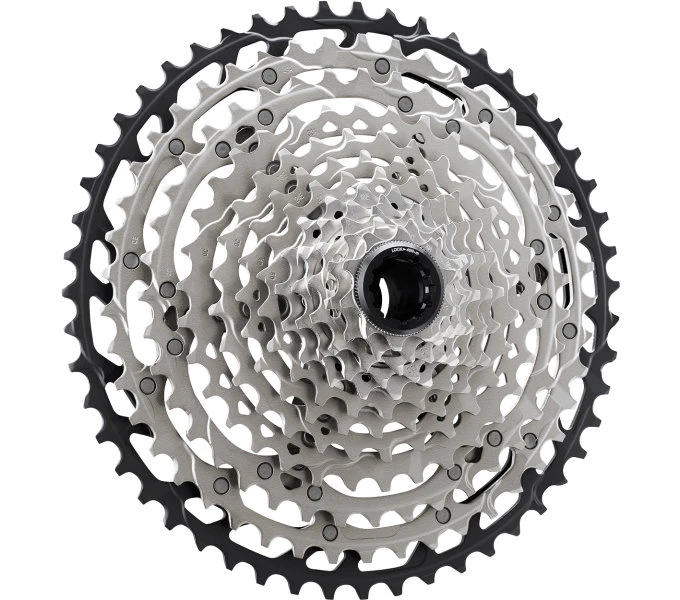

SHIMANO SLX CS-M7100 12-speed Cassette

The SHIMANO SLX CS-M7100 12-speed cassette is already the entry into the upper class. It has the genes of the SHIMANO flagship XT as well as technologies from the high-end XTR group. The M7100 thus offers first-class shifting performance. Only the weight is a few grams heavier.

It is offered with two gear ratios designed for 1×12-speed drives. The version with 10-45 teeth offers a finer gradation, while the 10-51 tooth version provides a huge gear range and makes every steep ramp child’s play.

Equipped with Hyperglide+ sprockets, shifting is extremely precise and smooth, while maintaining constant traction. It easily copes with shifting under full load. The BEAM SPIDER design saves weight and allows for an additional gear. In addition, the lighter and stiffer pinion design reduces inertia and provides more acceleration. The smaller MICRO SPLINE freewheel allows for the 10T sprocket, makes installation easier and also saves weight.

FEATURES

• MTB-optimised
• 1×12-speed cassette
• 10-51 or 10-45 gradation
• Beam Spider construction
• Hyperglide+
• Micro Spline

TECHNOLOGIES

Hyperglide+
A new generation of MTB touring – The drive system, renewed from the ground up with the specially developed chain, enables faster shifting, efficient power transmission and unprecedented chain stability. Better chain binding, greater stopping power and smoother pedalling provide more power and a confident ride in rapidly changing terrain conditions. Clearly defined upshifting and downshifting in both directions promotes rider concentration and aids acceleration. The highly efficient drive with smoother power transmission provides more comfort and less stress. HG+ precisely determines the optimal moment to change gear, ensuring smooth pedalling. This makes it easier for riders to adapt to abruptly changing terrain conditions. It also dampens the pedal stroke and shortens shifting times by a third compared to the HG system.

Micro Spline
The smaller aluminium freewheel saves weight and allows a 10-tooth sprocket to be fitted for a wider gear range. The smaller gearing reduces the risk of damage from the sprockets on the freewheel.

Specifications

Manufacturer:	Shimano
Weight:	513 g (10-45 T) | 534 g (10-51 T)
Item:	SHIMANO SLX CS-M7100 12-speed cassette
Scope of delivery:	1 CS-M7100 incl. lockring
Specifications:	HYPERGLIDE+
Maker’s ref. no.:	I-CSM7100045 | I-CSM7100051
Material:	Spider – aluminium | Sprocket – steel, aluminium
Switching steps:	12-speed
EAN:	4550170444297 | 4550170444303
Recommended chain:	HG 12-speed
Gradation:	10-12-14-16-18-21-24-28-32-36-40-45 | 10-12-14-16-18-21-24-28-33-39-45-51
