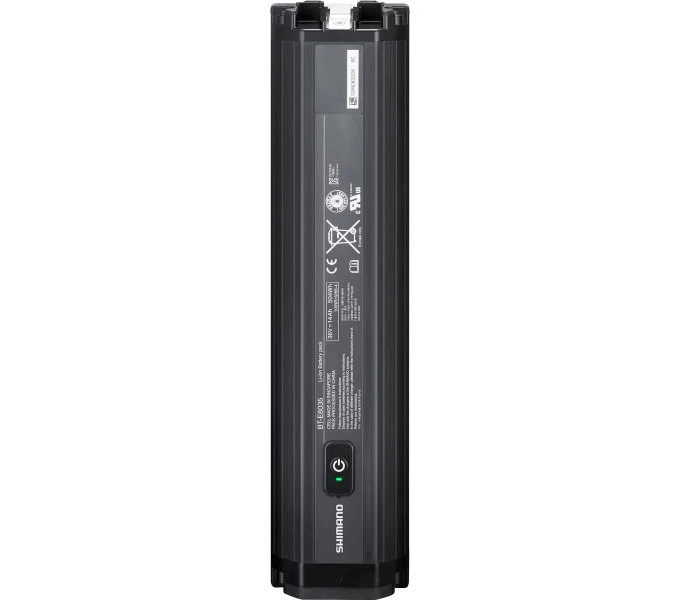

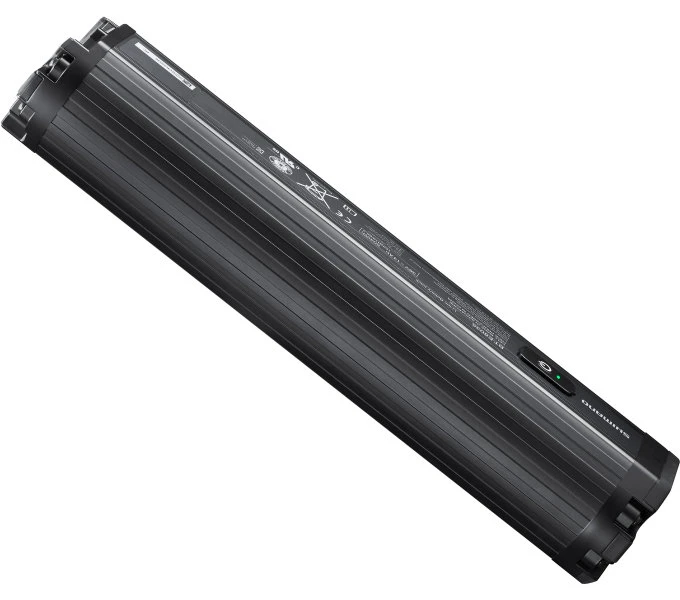

Shimano STEPS BT-E8035 Intube Battery – 504 Wh



The Shimano Steps Intube battery BT-E8035 is the latest battery generation from Shimano. The new design of the BT-E8035 is slimmer than the previous model BT-E8020 and thus contributes to a chicer down tube appearance. The Shimano Steps BT-E8035 comes with powerful 504 Wh and creates depending on influencing factors such as rider weight, route topography and selected support mode up to 100 km range. The Li-ion battery is protected by a down tube cover, so that the Shimano BT-E8035 battery is protected from external influences.

Details of the Shimano Steps Intube battery BT-E8035:

• Intube battery for down tube
• Group Shimano STepS E8000
• 504 Wh capacity
• Weight: 2900 g

Replacement and commissioning of the Shimano Steps BT-E8035

The exchange or removal of the e-bike battery is done by turning the key on the battery lock, whereby the battery comes out of the down tube a bit. For final removal, only the silver plate must be unlocked and the battery can be completely removed from the down tube.

The commissioning of the Shimano BT-E8035 Intube battery is done by the on / & off switch on the top tube. The Intube battery can be directly on the e-bike via a slim charging socket or charged in the removed state in any place with a socket.

Dimensions are:

Length: approx. 35cm

width: approx. 8,5cm

Height: approx. 6.5cm



Specifications

Battery capacity:	500 Wh or more
Drive system:	Shimano drive
Manufacturer:	Shimano
Shimano System:	Shimano E8000, Shimano Steps E7000 (E-MTB)
Item:	Shimano STEPS BT-E8035 Intube Battery – 504 Wh
Scope of delivery:	1x Shimano STEPS BT-E8035 Intube Battery
Colour:	black
Measurements:	Length: approx. 35cm Width: approx. 8,5cm Height: approx. 6,5cm
Charging cycles:	14 Ah = 1000 charging cycles, after that the remaining capacity is 60%.
Range:	14 Ah = under optimal conditions up to 100 km in the E-MTB range
Compatibility:	E6000 & E8000 Component Systems
Maker’s ref. no.:	I-BTE8035E
