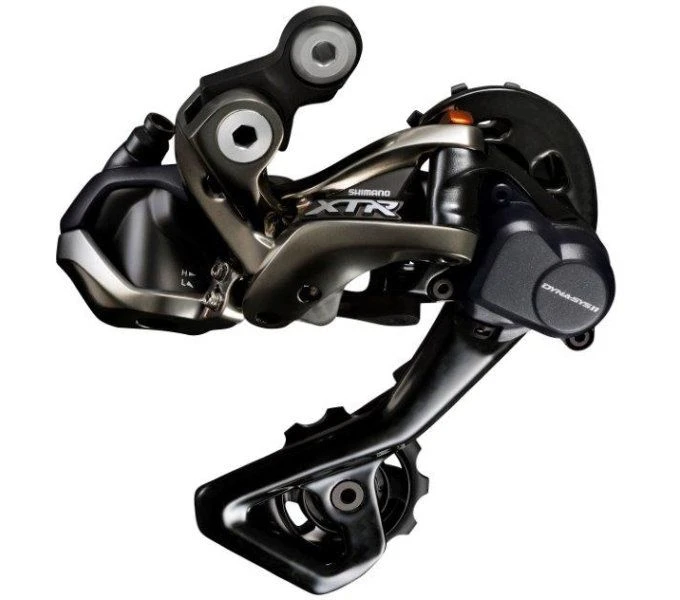

SHIMANO XTR Di2 RD-M9050 GS|SGS 11-speed Rear Derailleur-mid-length | Long

RACE PERFORMANCE!

The XTR groupset is the top end of the SHIMANO MTB portfolio. These high-performance components contain everything Shimano has to offer in terms of technology and know-how – it doesn’t get any better than this! Optimised for MTB racing, they shine with low weight and best performance. The best racers in the world rely on these parts.

The SHIMANO XTR RD-M9100 rear derailleur is exclusively for use on MTBs with 1×12-speed drivetrains and the 10-45T or 10-51T cassette and thus offers a huge gear ratio range. It is characterised by lightning-fast and absolutely precise shifting processes. A 13-tooth guide pulley, a damper and an additional stop on the swingarm counteract drive noise and provide a good portion of comfort. The lower preload and chain tension in the lower gears also contribute to this. The SHADOW RD PLUS technology effectively prevents the chain from slipping and jumping off.

The high-end rear derailleur is available with a long cage (SGS) for the 10-51T cassette and with a short cage (GS) for the 10-45T cassette. With 28mm more ground clearance compared to the SGS, the GS version is particularly suitable for an aggressive riding style. However, both versions are characterised by a flat construction. This reduces the risk of getting caught on stones, trees or similar things in the terrain.

A big extra of the XTR components is the low weight and the high-quality workmanship. The M9100 rear derailleur weighs only approx. 237 g in the GS version. Details such as flour-coated joint bushings and rear derailleur rollers with sealed industrial bearings guarantee, among other things, a high life expectancy.

Features

• Racing optimised rear derailleur
• Long or short cage
• For 1×12-speed drives
• Low-noise drive
• Additional stop on the rear derailleur swingarm
• SHADOW RD+
• 13Z rear derailleur pulleys with sealed industrial bearings
• Approx. 237g (GS)
• 8 Flour-coated pivot bushings
• Slim design for increased safety

Compatibility derailleur-cassette (max. sprocket size)

GS – mid-long cage	SGS – long cage
11-46T – 1×11-speed	11-46T – 1×11-speed
11-42T – 2×11-speed	11-42T – 2×11-speed
	11-40T – 3×11-speed

Technologies

SHADOW RD PLUS
A stabiliser in the rear derailleur effectively prevents the chain from slamming off-road. This improves chain guidance and reduces the risk of the chain jumping off. In addition, the technology ensures less noise in the drive.

Note: should you have any questions regarding compatibility or availability, do not hesitate to contact our customer service.

Specifications

Manufacturer:	Shimano
Weight:	approx. 289 g (GS) | approx. 295g (SGS) – manufacturer’s specification
Item:	SHIMANO XTR Di2 RD-M9050 GS|SGS 11-speed derailleur
Scope of delivery:	1 x RD-M9050 derailleur
Colour:	XTR Series Color
Maker’s ref. no.:	I-RDM9050GS | I-RDM9050SGS
Field of application:	MTB
Mounting:	Direct mounting
Switching steps:	11-speed
Functionality:	electronic
EAN:	4524667604129 | 4524667604112
Total capacity:	GS – 35 teeth | SGS – 41 teeth
Max. largest pinion:	GS – 42 T (2×11), 46 teeth (1×11) | SGS – 40 T (3×11), 42 T (2×11), 46 teeth (1×11)
Min. smallest pinion:	11 teeth
Cage length rear derailleur:	Mid-long | Long
Recommended chain:	HG-X 11-speed
Stabiliser (preload):	SHIMANO SHADOW RD+
